Description 12bar well inline water pump digital pressure control switch controller
It is an intelligent digital pressure switch professional unit integrating pressure measurement, pressure display and control. It has the characteristics of convenient operation, good shock resistance, high precision, and good long-term stability. Control functions can be realized: low pressure shutdown, high pressure start or high pressure shutdown, low pressure start. The control pressure can be set in a full range. It also has the following functions: delay control, reverse control, three pressure unit changes, one-key error removal, pressure leakage protection, password protection, and automatic pressure detection. It is widely used in building water supply, hydraulic control, automatic machinery supporting equipment.
Specification 12bar well inline water pump digital pressure control switch controller
Pressure range 0-0.2...0.6...1...1.6...2.5...5...10...25...40...60Mpa
Overload pressure 150%
accumulation 0.5%FS
supply 24VDC, 220VAC, 380VAC (optional)
Alarm point setting You can set any point within the range.
output signal Relay signal
R 380V 3A 220V 5A 24V 5A
Sampling frequency 5 times/sec
Operating temperature -20℃~80℃
Measuring medium Liquid and gas compatible with 316L stainless steel.
Connection protection Reverse protection, short circuit protection
Connector M20*1.5, G1/2, G1/4 (optional)
Outgoing Power supply: red and blue output: black and white
APPEARANCE&CONNECTION METHOD12bar well inline water pump digital pressure control switch controller
Working method: When the pressure increases to the set pressure upper limit, the black and white lines are disconnected; when the pressure drops to the lower limit pressure, the black and white lines are connected. The reverse control function (t000) can be turned on in the system function to realize: high pressure start and low pressure stop. * The color of the socket is finally subject to the product label.

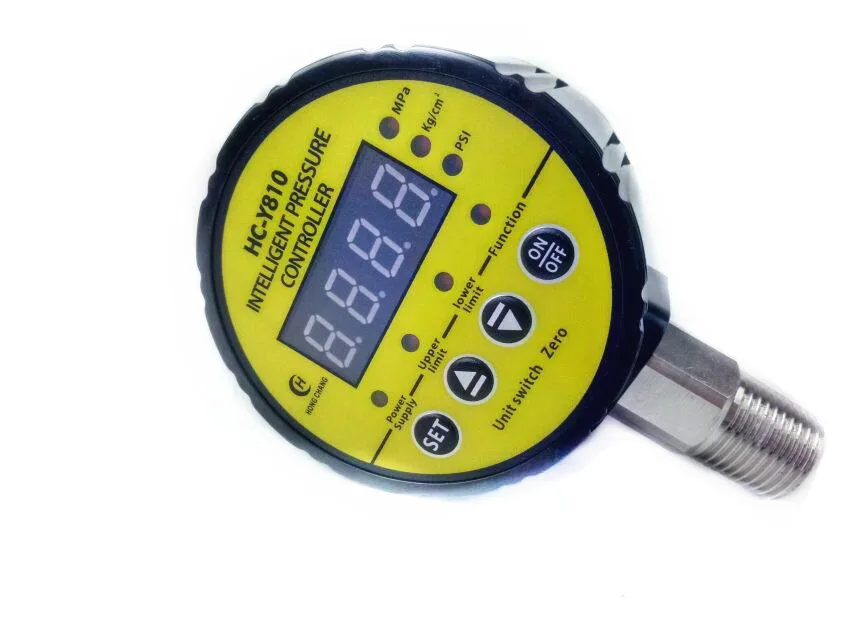

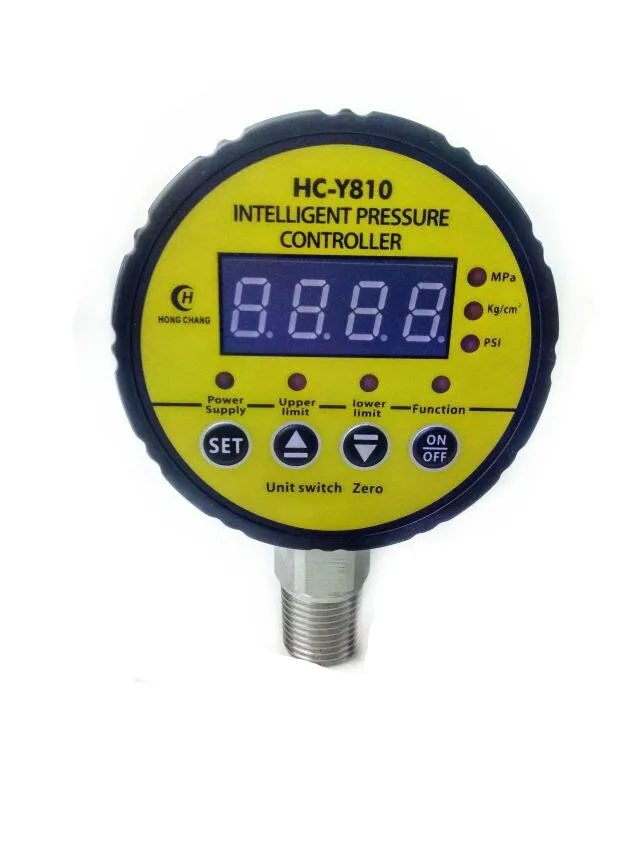

Detailed Images 12bar well inline water pump digital pressure control switch controller
